Honeycomb Ceramic for Oxidizers (RTOs)

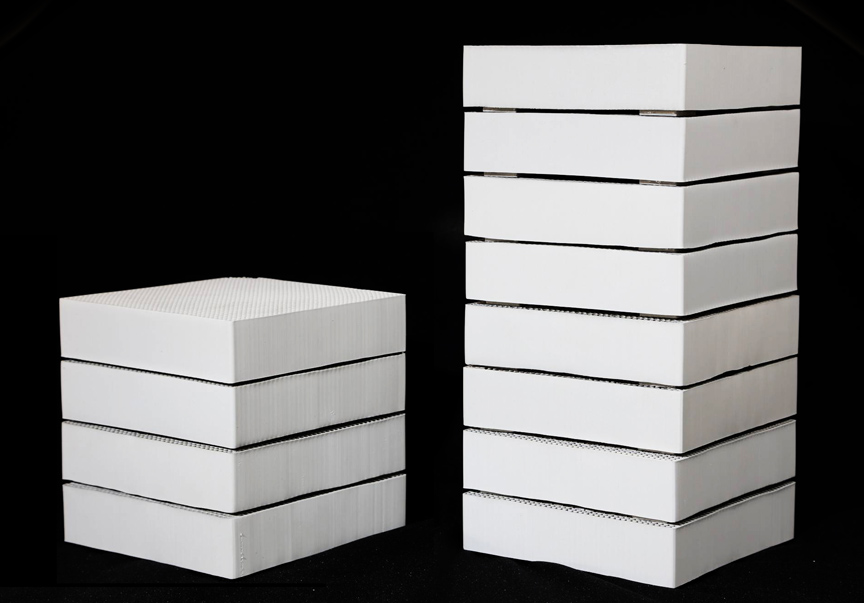

40-cell-honeycomb-300-150

Segmented Honeycomb Ceramic for RTOs

Segmented Honeycomb™ ceramic media from Lantec Products are an equivalent replacement for conventional honeycomb (“monolith”) media used in regenerative thermal oxidizers. While segmented and conventional honeycombs operate with equivalent heat-transfer and pressure drop characteristics, the innovative design of Segmented Honeycomb™ offers several key performance advantages.

Segmented Honeycomb™ allows continual air re-distribution throughout the bed. The gas has the freedom to move around blockages (minimizing fouling) at each interface, whereas conventional honeycombs trap the gas in a single cell which can become blocked for the entire height of the bed. Allowing the gas to mix laterally also helps maintain uniform temperature profile, improve gas distribution, and dissipate localized hot-spots from VOC ignition.

Segmentation also relieves thermal stress to minimize breakage due to thermal shock.


Pressure Drop Curves (under construction)

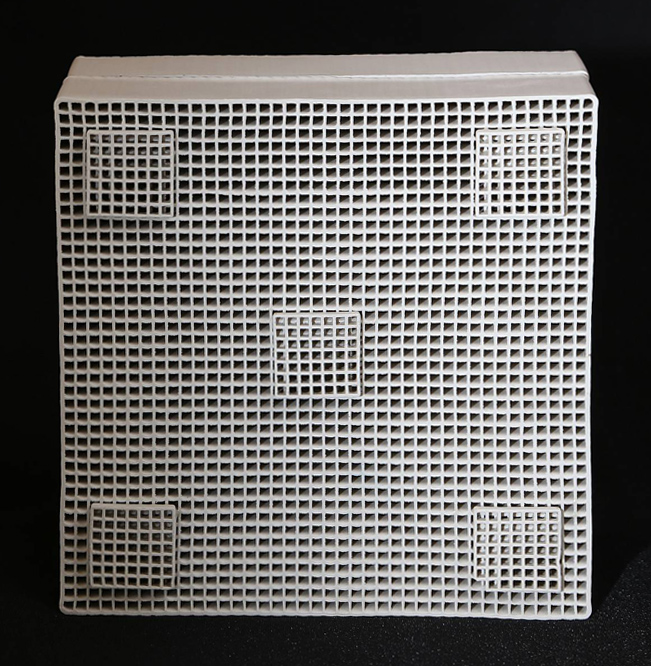

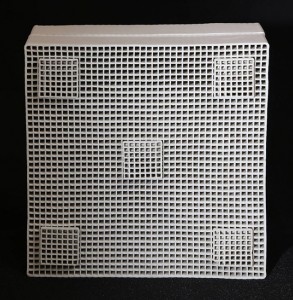

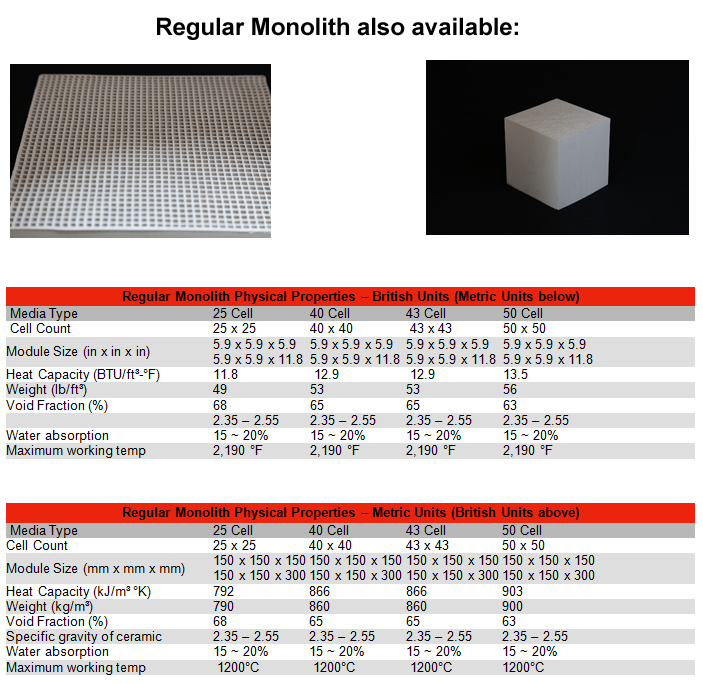

40_cell_monolith_faceview







Segmented Honeycomb  Physical Properties – British Units (Metric Units below)

 Media Type SHC-25 SHC-40 SHC-43 SHC-50
 Cell Count 25 x 25 40 x 40  43 x 43 50 x 50
Module Size (in x in x in) 5.9 x 5.9 x 3.0
5.9 x 5.9 x 5.9
5.9 x 5.9 x 3.0
5.9 x 5.9 x 5.9
5.9 x 5.9 x 3.0
5.9 x 5.9 x 5.9
5.9 x 5.9 x 3.0
5.9 x 5.9 x 5.9

Heat Capacity (BTU/ft³-°F) 10.0  10.9  10.9 11.3
Weight (lb/ft³) 41 44 44 46
Void Fraction (%) 72 70 70 68
Specific gravity of ceramic 2.2 – 2.5 2.2 – 2.5 2.2 – 2.5 2.2 – 2.5
Water absorption (ASTM C373) ≤ 3.0 % ≤ 3.0 % ≤ 3.0 % ≤ 3.0 %
Maximum working temp 2,025 °F 2,025 °F 2,025 °F 2,025 °F






Segmented Honeycomb Physical Properties – Metric Units (British Units above)

Media Type SHC-25 SHC-40 SHC-43 SHC-50
Cell Count 25 x 25 40 x 40 43 x 43 50 x 50
Module Size (mm x mm x mm) 150 x 150 x 75
150 x 150 x 150
150 x 150 x 75
150 x 150 x 150
150 x 150 x 75
150 x 150 x 150
150 x 150 x 75
150 x 150 x 150

Heat Capacity  (kJ/m³ °K) 674 728 728 760
Weight (kg/m³) 660 710 710 740
Void Fraction (%) 72 70 70 68
Specific Gravity of Ceramic 2.2 – 2.5 2.2 – 2.5 2.2 – 2.5 2.2 – 2.5
Water Absorption (ASTM C373) ≤ 3.0 % ≤ 3.0 % ≤ 3.0 % ≤ 3.0 %
Maximum working temp  1110°C  1110°C  1110°C 1110°C
